CNC Spring Forming Machine Cam Spring Machine Wire Former Machine
Product Description
The cam wire rotary spring machine is based on the cam machine with the function of wire rotary which is convenient to operate, efficient, fast, stable, and high-precision. It is mainly composed of cam axis, wire feed axis, wire rotary axis, quil mandrel, spinner (optional accessory), etc. The five axes can be operated synchronously. Each axis is controlled by CNC. The wire feeding length, production speed, and production quantity can be modified according to its needs. It is only necessary to input data according to the drawing, and the debugging is very fast.
1. It is cam design, producing springs with high speed and accuracy, good stability.
2. Used Taiwan' s CNC system and equipped with Sanyo or Yaskawa servo motors.
3. Wire feed with rotary wire, so it is easy to commission.
4. Computer operation panel and screen displayed in Chinese and English which makes the operation easy.

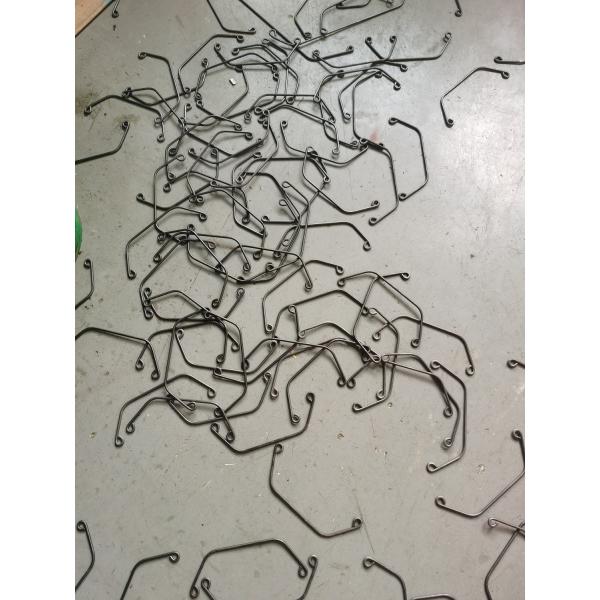

5. It is suitable for for producing double tension spring , straight spring, pagoda-shape pull the compression spring , rectangle spring, swirl spring and other different spring and special -shape spring etc.
6. Its tool has good strength and durability, longer service life, less frequent replacement in the long-term, and lower cost. At the same time, it also saves maintenance time, which is conducive to long-term mass production and greatly improves production efficiency.
Data sheet
| Model | 20T-5A |
| Wire size | Φ0.3-2.5mm |
| Total power | 9.5KW |
| Servo motor axes | 5 |
| Wire feed wheels | 3 groups |
| Wire feed | 2.7KW |
| Wire rotary | 2.7KW |
| Cam | 2.7KW |
| Spinner | 0.4KW |
| Quil | 1KW |
| Machine size | L1700xW1500xL1700MM |
| Weight | 1500kg |
| Power | 3 phase, 380V/50HZ |
Packing

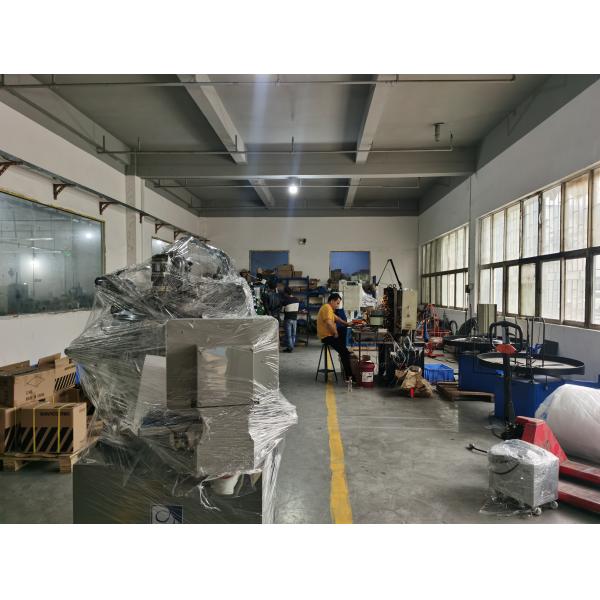

Wooden case/vacuum packing
After sale service
HYD Services:
1. Free training is provided in HYD production base.Pictures and video of the machine operation will be sent for confirmation before shipment.
2. The professional and patient consulting service will help you find the suitable solution.
3. Quick and safe shipment as per your requirement including the booking ,container loading, and shipping documents.
4. HYD provide technical support by email and phone,technicians will be available at your side if necessary.
5. Spare parts will be freely supplied during the guarantee period(one year), original cost after this period.
